The purpose of mapping is to check and modify the company's analysis perimeter. Before setting up the mapping, it is necessary to understand how it works.
Understanding how to choose the right assets (example)
To understand which assets to capture, one needs to think about the concept of DNS. The DNS infrastructure is a "tree" that links domain names and IP addresses of devices on the Internet.
The Security Rating® uses DNS records to identify a portion of the assets of the company being rated. Therefore, the choice of the domain entered is crucial and determines the completeness of the assets discovered.

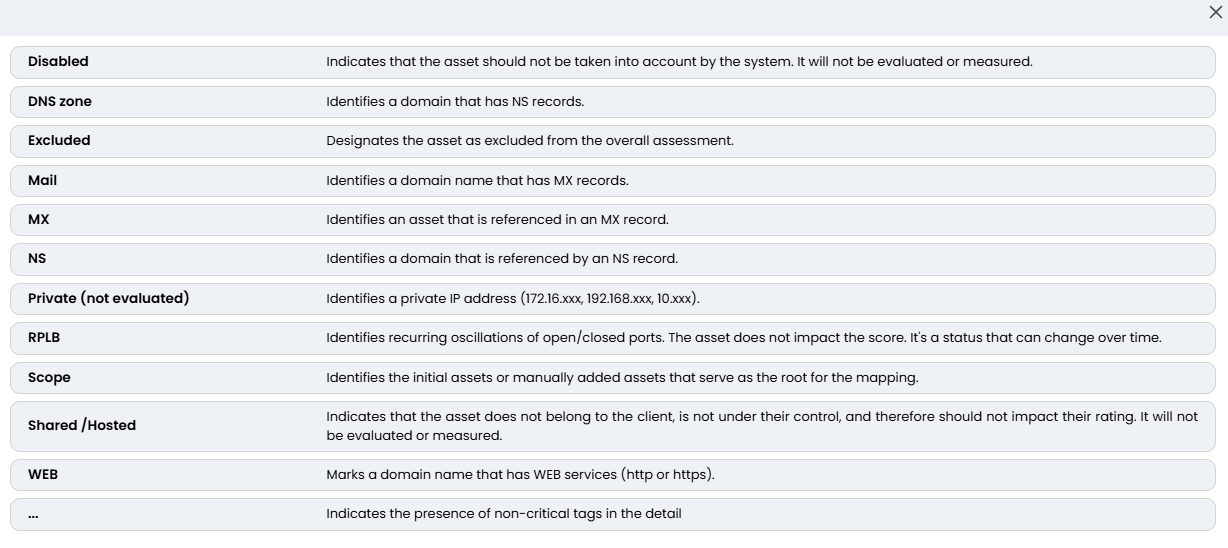

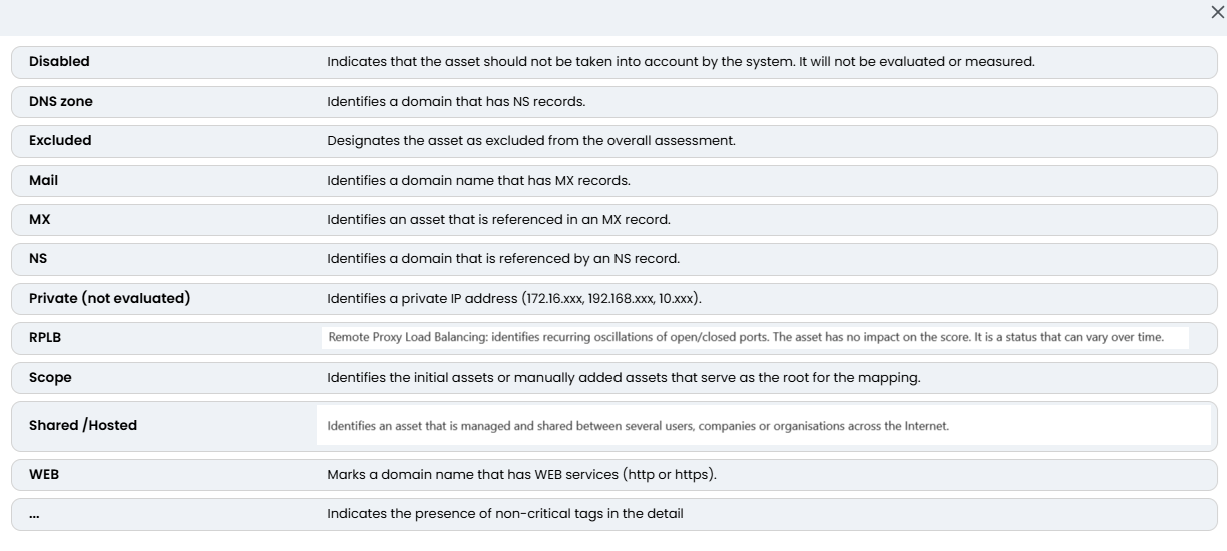

Meaning of mapping TAGS
Please note:
Starting June 1, all mapping on the old system will be automatically migrated to the new system.
Some mapping tags will also change.
Excluded from the scope of evaluation :
|
Disabled |
The asset does not belong to the company being valued or the asset has been decommissioned from the information system. This asset will not have any impact on the rating and will be ignored. |
|
Shared/Hosted asset/ Mutualized |
The asset is not under the exclusive control of the customer; the asset is hosted on a server with other assets for other companies. This asset will not have any impact on the rating and will be ignored. |
|
Included in the scope of evaluation: |
|
|
A |
The resource is a domain referenced by an A record |
|
CNAME |
A canonical name registration that associates an alias name with the real domain name. This is potentially detected as shared but forced by the user as belonging to him and to measure. |
|
DNS Zone |
The DNS zone that hosts the DNS records of the domain. |
|
Internal redirection |
The resource is a URL that redirects to a URL on the same site (https://example.com/ redirects to https://example.com/home.html) => Evaluated |
|
|
The resource is a domain referenced by an MX record => Mail Server |
|
MX |
The resource is a domain referenced by an MX record |
|
NS |
The resource is a domain referenced by an NS record |
|
Potentially shared/Hosted asset |
Asset hosted by a cloud provider that we don't know if it's assigned only to the customer or not |
|
Private (not evaluated) |
The asset is a private IP address => Not evaluated |
|
PTR |
The asset is an IP address that has a PTR record |
|
Redirection |
URL redirected to another site => Not evaluated |
|
Root Domain |
Recognized as a root domain |
|
RPLB |
The asset is an IP address suspected of being a reverse proxy or load balancing |
|
RPLB exclusion |
If a reverse proxy / load balancing is detected, the tool automatically excludes it from the scope, this tag forces the tool to include the resource in the scope |
|
Scope |
Asset defined by the user to represent to the initial scope to start the mapping from |
|
SUB |
The asset is a subdomain |
|
TXT |
Domain with TXT record |
|
WEB |
The asset is a URL (http://..., https://....) |
